2.2 W amplifier with BC337 and BC327 (CB14619E)

Details
Written by: Newton C. Braga

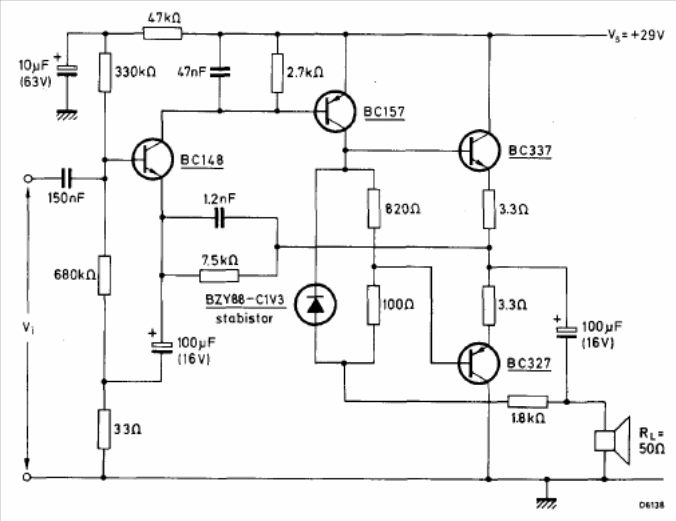

This small audio amplifier circuit in complementary symmetry was found in the 1974 Mullard Databook. The output pair can also be the BD135 and 136.
