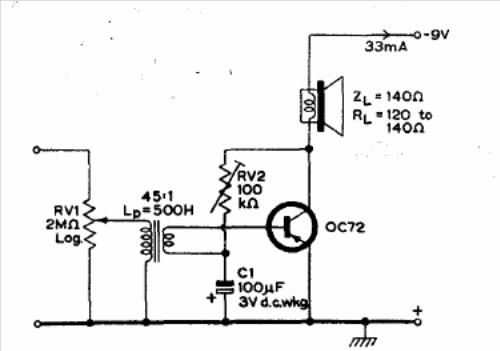

The power of this germanium transistor audio output stage is a few tens of milliwatts. The circuit is from the 1960 Mullard transistor reference manual. The transformer is the critical component of the circuit.
Germanium Transistor Output Stage (CB14752E)
- Details
- Written by: Newton C. Braga
