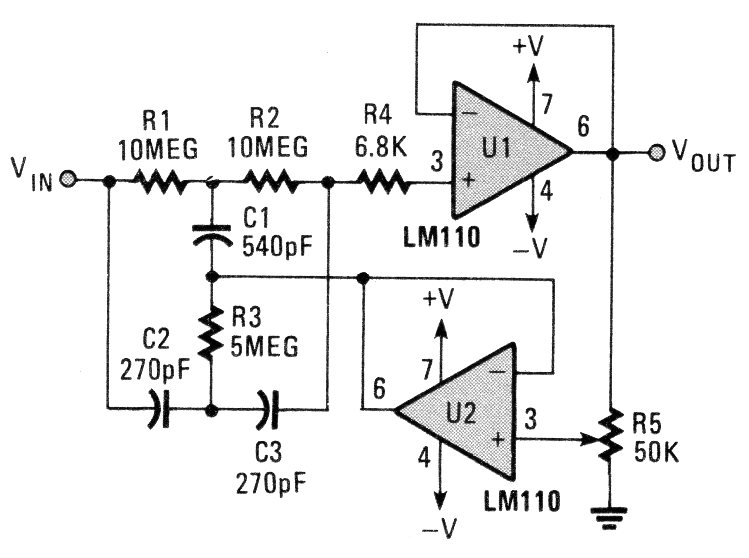

Adjustable Notch Filter (CB14918E)

Details
Written by: Newton C. Braga



This circuit was found in an old Poptronics. Operational amplifiers can be replaced with equivalents. The power supply must be symmetrical.




| Clique na imagem para ampliar |
