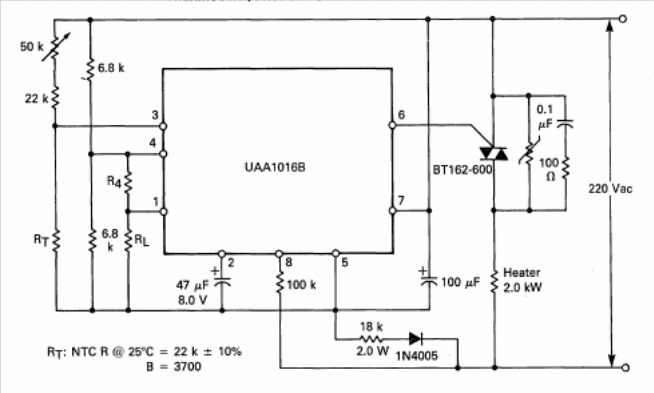

This circuit incorporates a thermostat. The circuit is from Motorola's Linear Interface ICs from 1993. The basic component used is not common today and the Triac must be according to the power of the heating element.
| Clique na imagem para ampliar |
