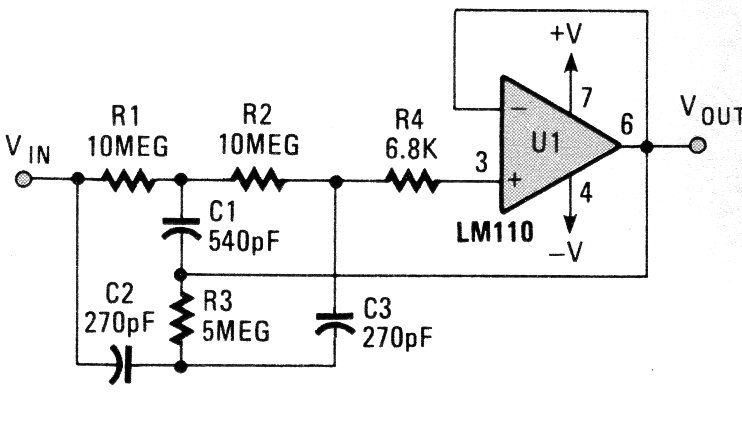

The frequency of this circuit, for the indicated components, is 1 kHz. Other operational amplifiers can be used, and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Active Notch Filter (CB14917E)
