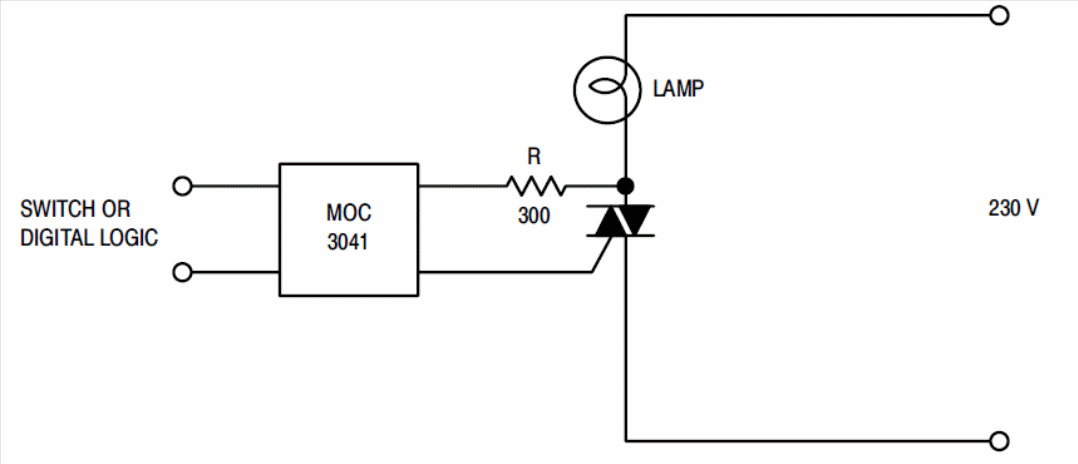

This circuit, from the On Semiconductor thyristor manual, is suitable for incandescent lamps or high-power resistive loads. The power will depend on the triac and the circuit, with the indicated coupler, operates on the 220/230 V network.
