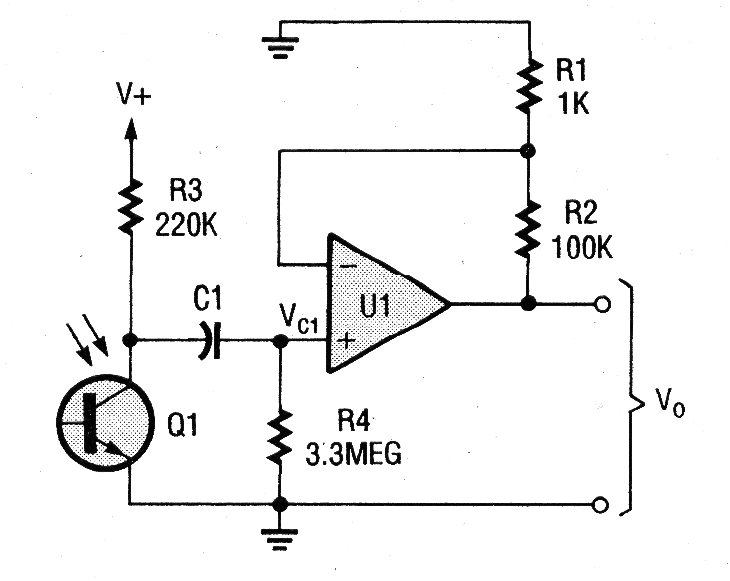

This setting applies to virtually any photo transistor and any operational amplifier. The power supply must be symmetrical, and the gain is determined by the relationship between R2 and R1.
| Clique na imagem para ampliar |
Phototransistor Amplifier (CB15016E)
- Details
- Written by: Newton C. Braga
