High Gain Amplifier (CB15109E)

Details
Written by: Newton C. Braga

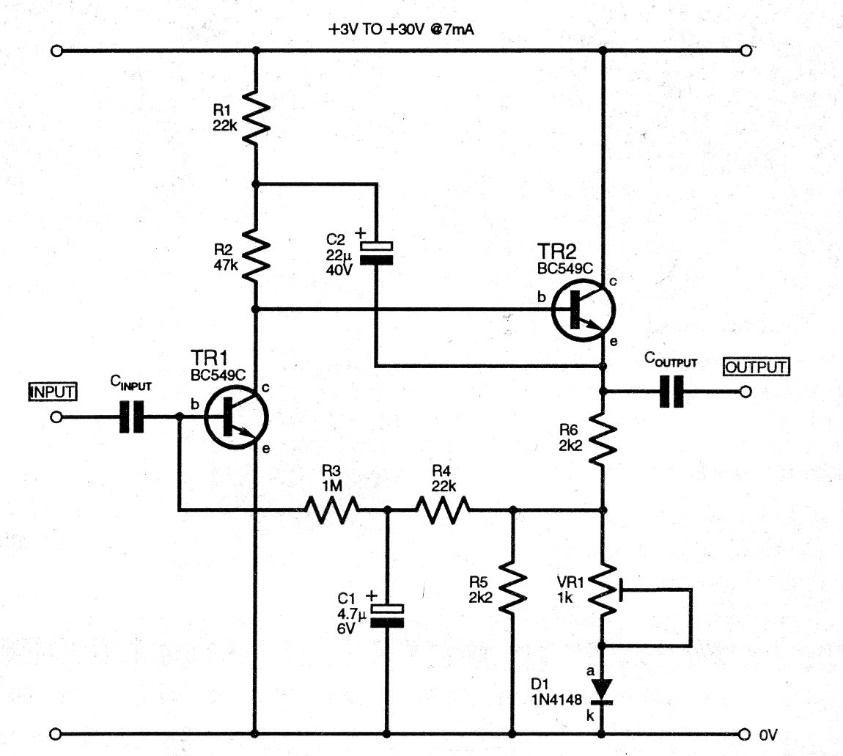

This transistorized stage has a high gain, being adjusted by VR1. The circuit can be used as an excellent audio preamp. We found this circuit in a 1996 English publication.
