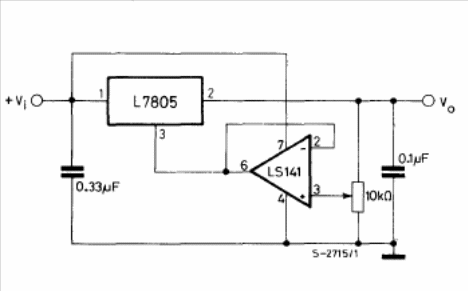

The L7805 is the SGS equivalent of the 7805. The circuit is from the SGS linear integrated circuit manual and the operational amplifier can be a 741. The input voltage must be at least 33 V. The maximum output current is 1 A.
7 to 30 V regulator 7805 (CB15156E)
- Details
- Written by: Newton C. Braga
