20 W BTL Automotive Amplifier TDA2005S (CB15241E)

Details
Written by: Newton C. Braga

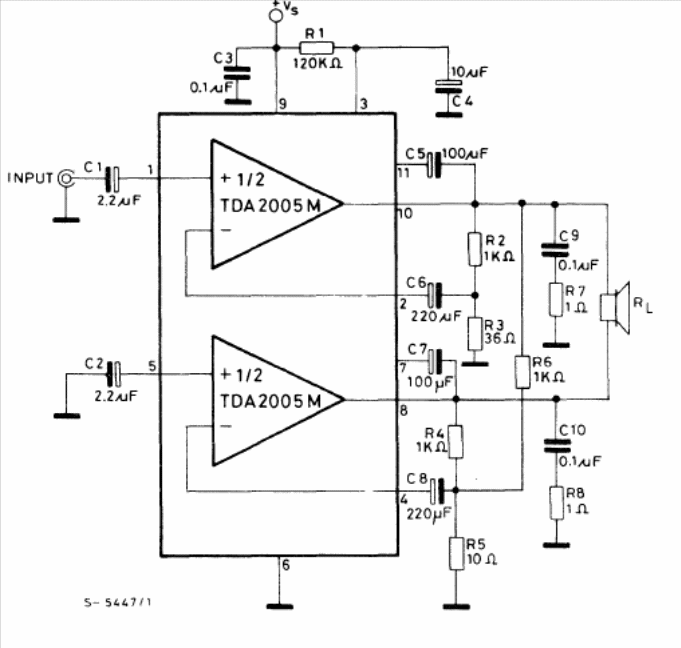

This circuit has a gain of 34 dB and a good power to be used as an audio booster in cars. The configuration was found in the 1982 SGS linear integrated circuit manual.




| Clique na imagem para ampliar |
