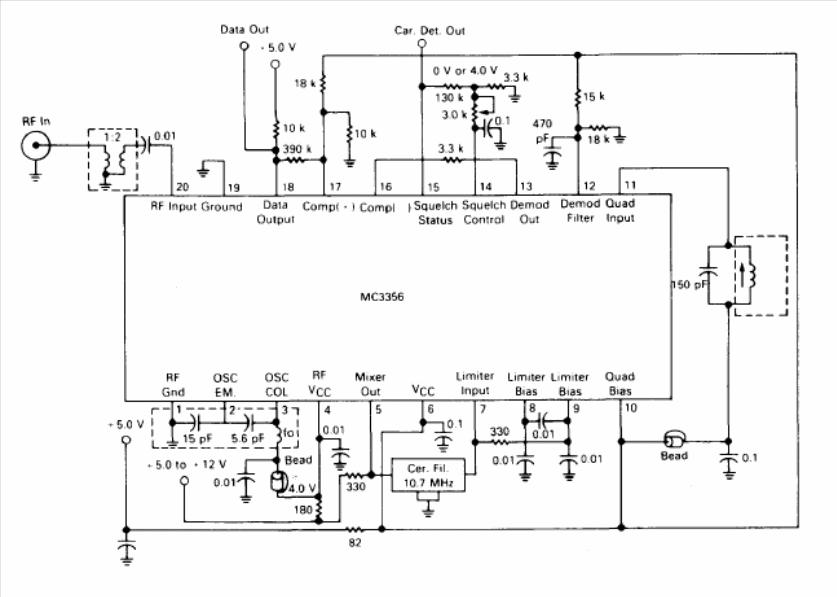

FSK receiver (CB14568E)

Details
Written by: Newton C. Braga



This circuit is from the Motorola Linear Databook of 1990. The coils must be according to the frequency of the signal.
