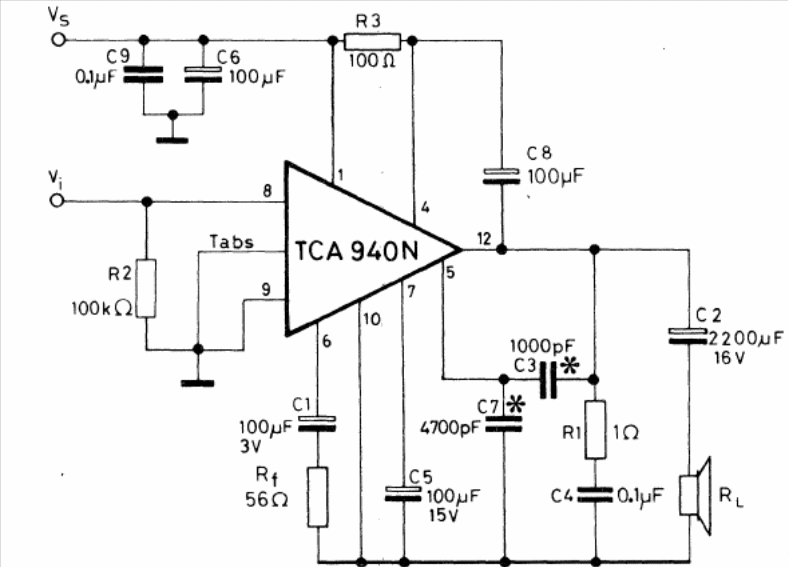

The integrated circuit used is not common today. The circuit is from the SGS linear integrated circuits manual. The source must supply at least 2 A and voltages in the range of 16 to 20 W. The power depends on the speaker voltage and impedance.
