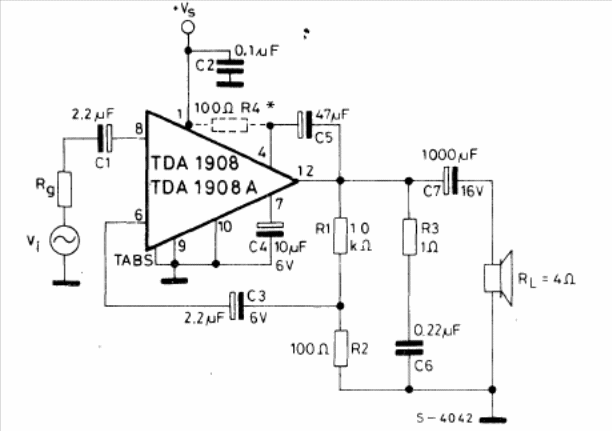

The supply can be between 4 and 10 V in this circuit and R4 is necessary when the supply is less than 10 V. The integrated circuit is not common today and the power depends on both the load and the supply voltage. The circuit is from the 1982 SGS Linear Integrated Circuits Manual.
