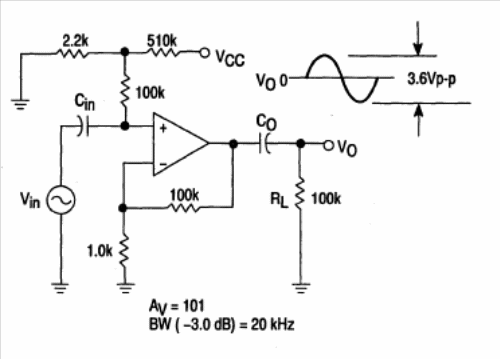

This circuit can also use other series operational amplifiers such as MC33172, MC33174, MC35171, BMC35172 and MC36174. The circuit is Motorola's 1993 Linear Interface ICs. The gain is 101.
AC Amplifier with 5 V Supply MC33171 (CB15269E)
- Details
- Written by: Newton C. Braga
