High Efficiency Regulator 5 V x 1 A 723 (CB15332E)

Details
Written by: Newton C. Braga

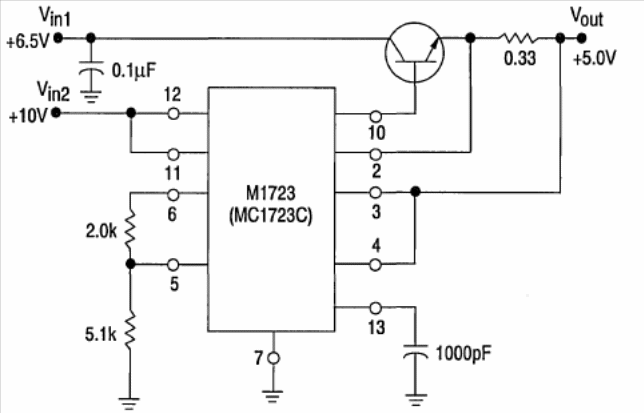

This circuit is from Motorola's Linear Interface ICs from 1993. The MC1723 is the equivalent of the well-known 723. The transistor supports equivalents.




| Clique na imagem para ampliar |
