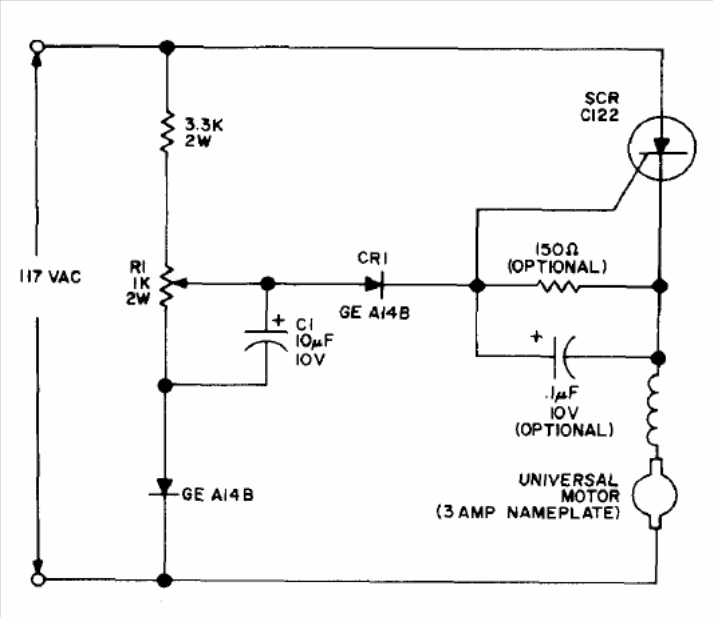

Universal 3A Motor Control (CB14717E)

The circuit shown is from the 1977 GE semiconductor manual. More modern equivalent SCRs can be used. R1 must be wire type.
