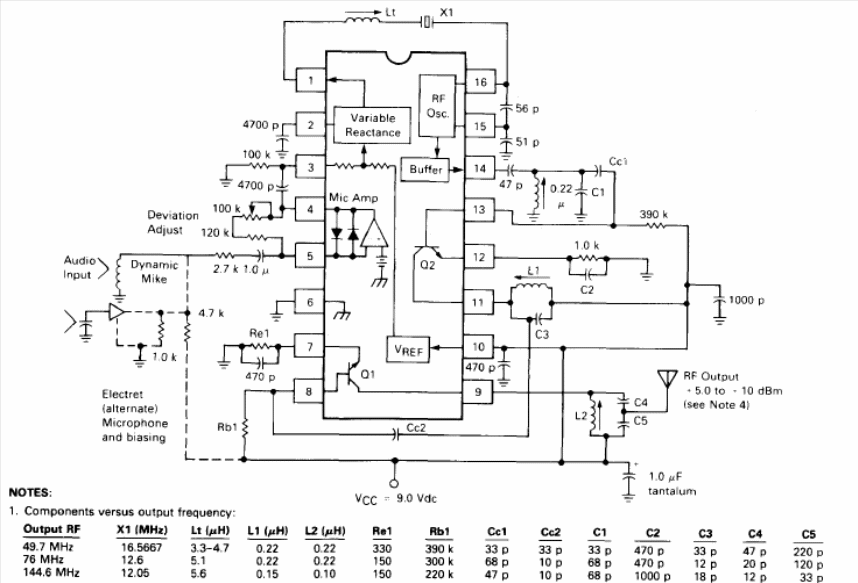

We found this transmitter circuit with a single chip in the Motorola Linear Databook of 1990. The circuit is powered by a 9 V battery and the crystal must be in accordance with the transmitted frequency. Details of the coils are given next to the diagram.
