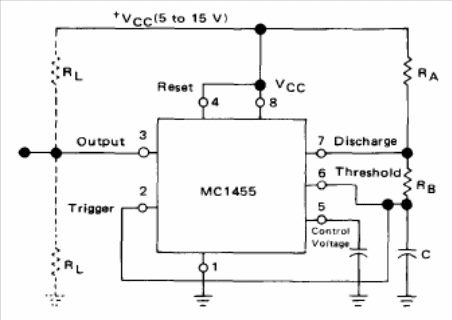

The MC1455 integrated circuit consists of a version of the 555 made by Motorola. The circuit given below is from Motorola's 1990 Linear Databook and the components are calculated in the same way as in a typical 555.
Astable MC1455 (CB14584E)
