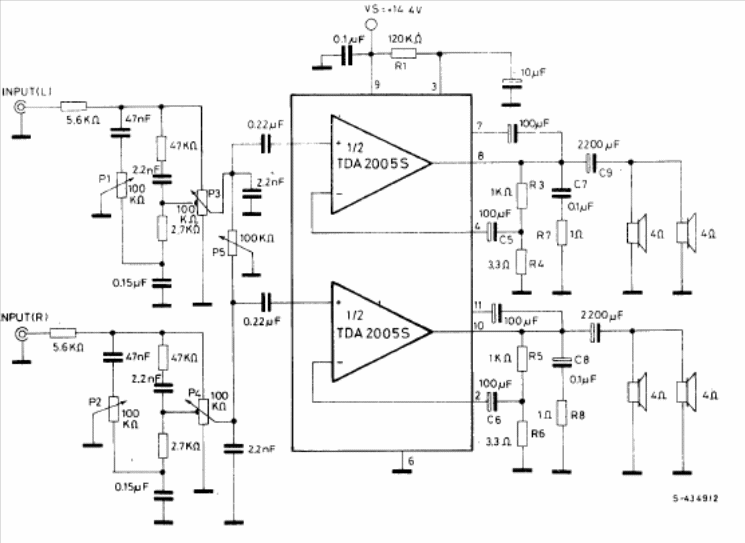

This circuit with bass and treble control and 10 W of power per channel is from the SGS manual of linear integrated circuits. The circuit can be used in automotive sound as a booster or in other applications. The source must have at least 5 A of current, if used.
| Clique na imagem para ampliar |
