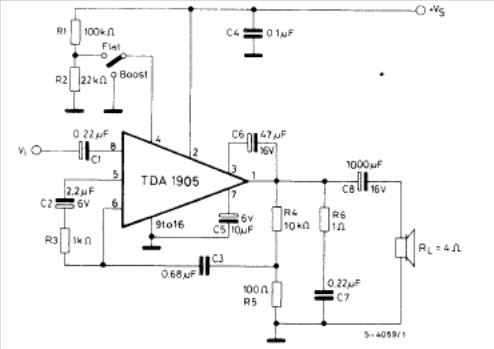

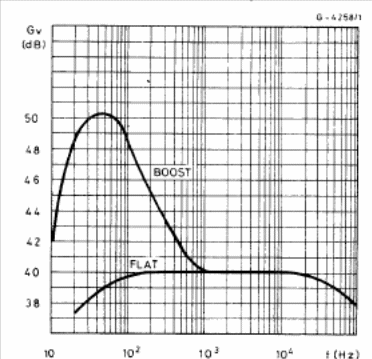

This circuit, from the SGS manual of linear integrated circuits of 1982, uses the muting input to produce a bass boost effect, with instantaneous reinforcement according to the curve given next to the diagram. The integrated circuit is not common nowadays and the power can typically be between 6 to 20.
