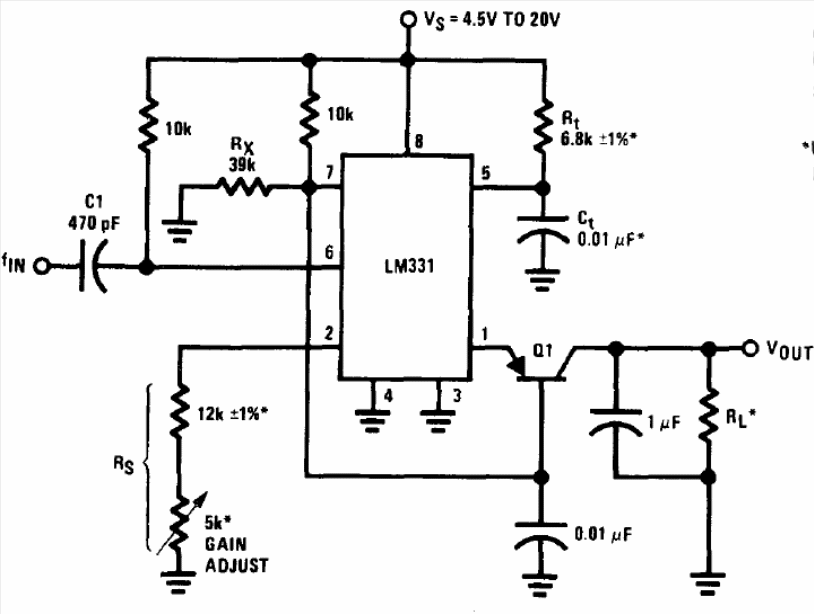

This circuit was obtained in the Linear Applications Handbook of the National Semiconductor of 1994. The transistor can be the BC558 or any general purpose PNP. The non-linearity of the circuit is 0.006%.
| Clique na imagem para ampliar |
Stable Voltage to Frequency Converter LM331 (CB14433E)
