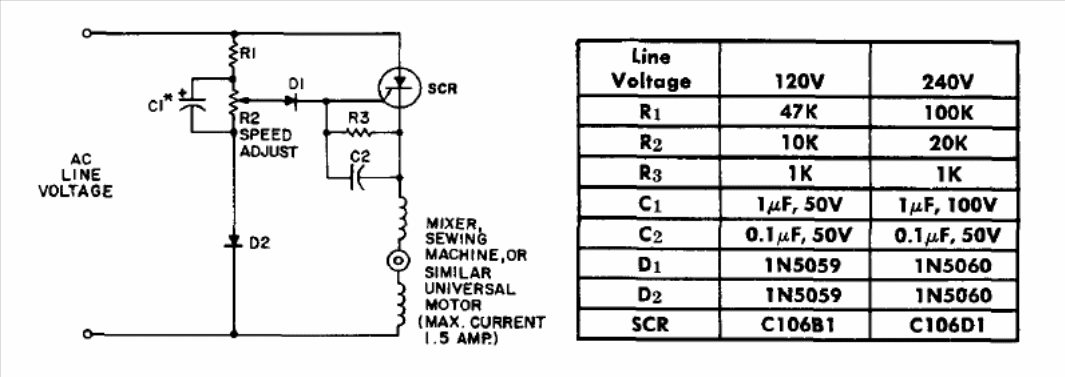

The circuit shown is from the GE semiconductor manual of 1977. In the table we have the values of the components for the 110 V and 220 V power grid. With the TIC106 the current can be slightly higher than indicated.
| Clique na imagem para ampliar |
Universal Motor Speed Control (CB14716E)
- Details
- Written by: Newton C. Braga
