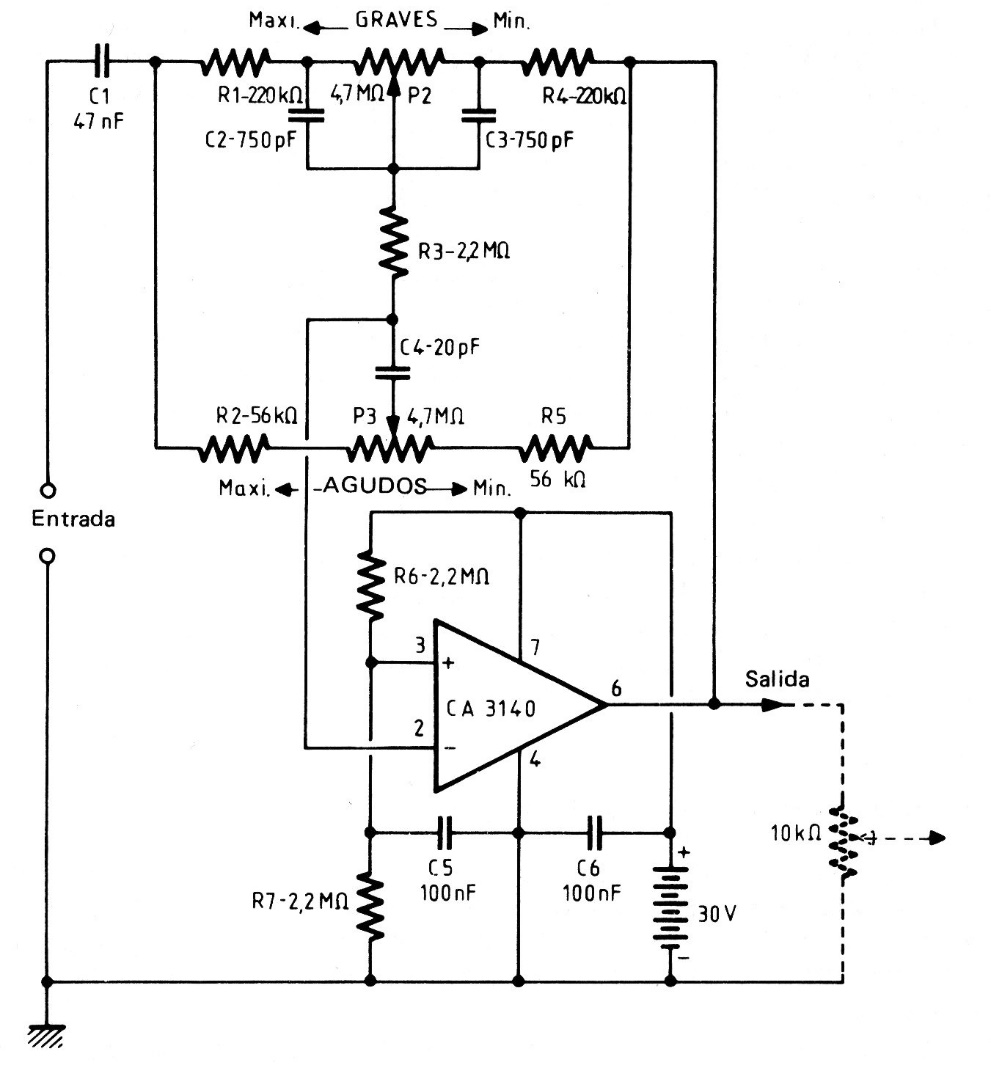

We found this circuit in a 1982 documentation. It uses a CA3140 or equivalent operational amplifier and does not require a symmetrical source. The output is 1 Vpp wide.
| Clique na imagem para ampliar |
High Impedance Tone Control (CB14848E)
- Details
- Written by: Newton C. Braga
