This circuit was found in a technical documentation from the 90's. The transistors can be equivalent general-purpose, and the frequency depends on the capacitors, which can be changed according to the application.
| Clique na imagem para ampliar |

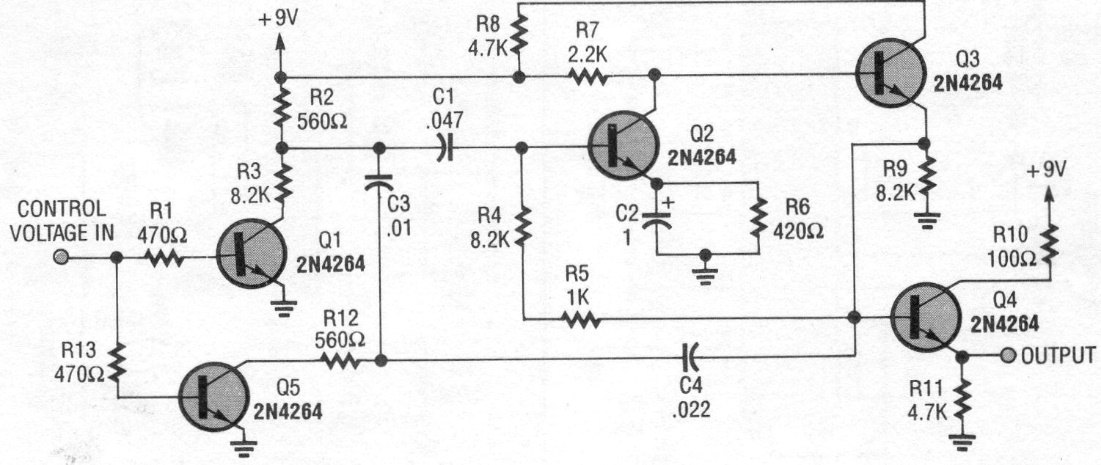

Voltage Controlled Sinusoidal Oscillator (CB14939E)
- Details
- Written by: Newton C. Braga
