4-Scale Voltmeter 2 (CB15014E)

Details
Written by: Newton C. Braga

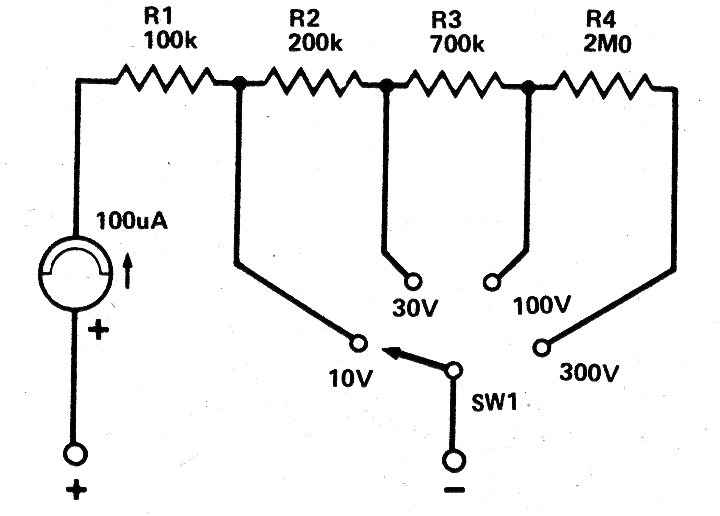

This circuit was found in an English publication from the 70s, an article that teaches how to calculate instruments. The circuit is still current and can be built with an analog indicator of 100 uA.




| Clique na imagem para ampliar |
