Voice Activated Switch MC2830 (CB14566E)

Details
Written by: Newton C. Braga

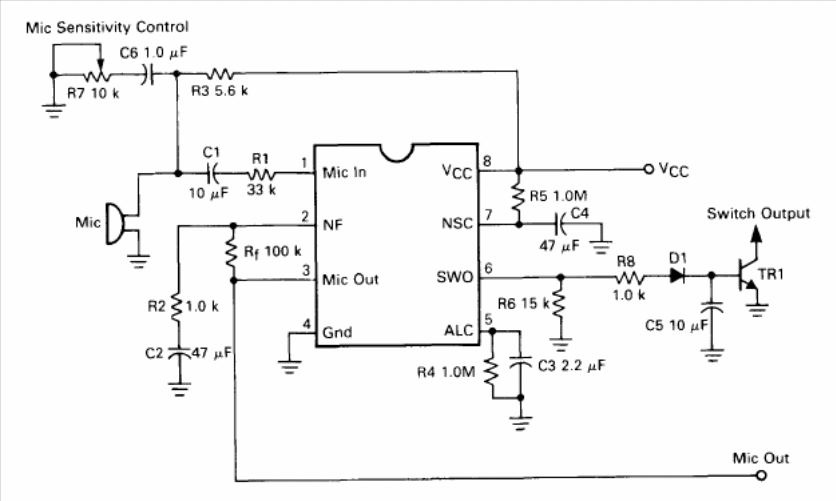

This Vox circuit uses a specific Motorola component. We found the circuit in the 1990 Linear Databook of the same company. The transistor must be in accordance with the switched load.
