SCR Delay Circuit (CB14713E)

Details
Written by: Newton C. Braga

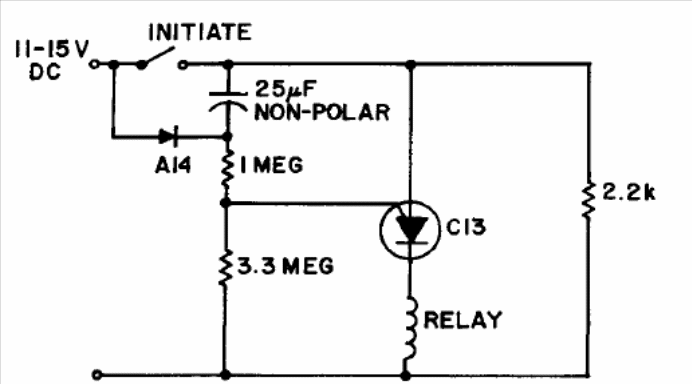

With the capacitor used, this circuit provides delays of 40 to 60 seconds. Larger capacitors can be used, and the SCR supports an equivalent. The circuit is from the 1977 RC semiconductor manual.
