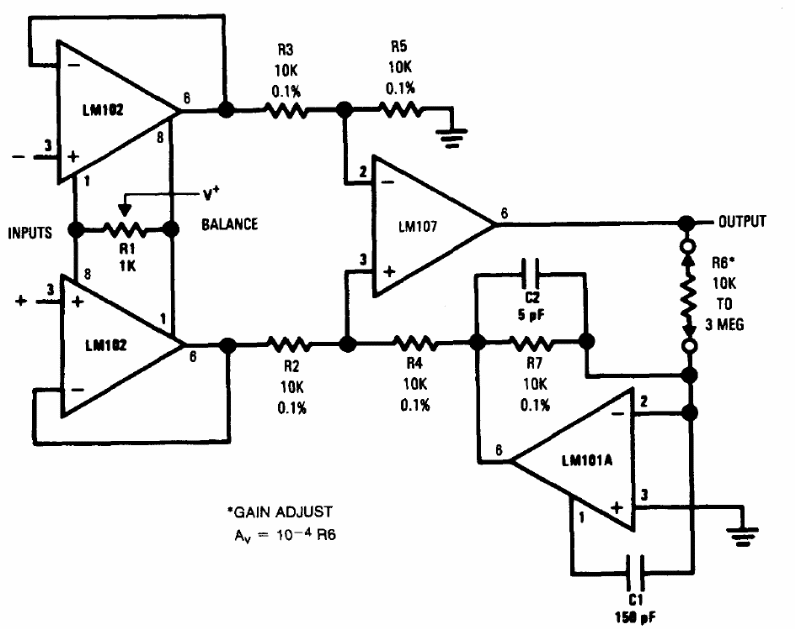

The presented circuit makes use of operational ones that are not common in the market. More modern operational equivalents can be used. The circuit is from National Semiconductor's 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |
Gain Adjustment Instrument Amplifier (CB14413E)
- Details
- Written by: Newton C. Braga
