Unijunction Delayed Switch (CB15036E)

Details
Written by: Newton C. Braga

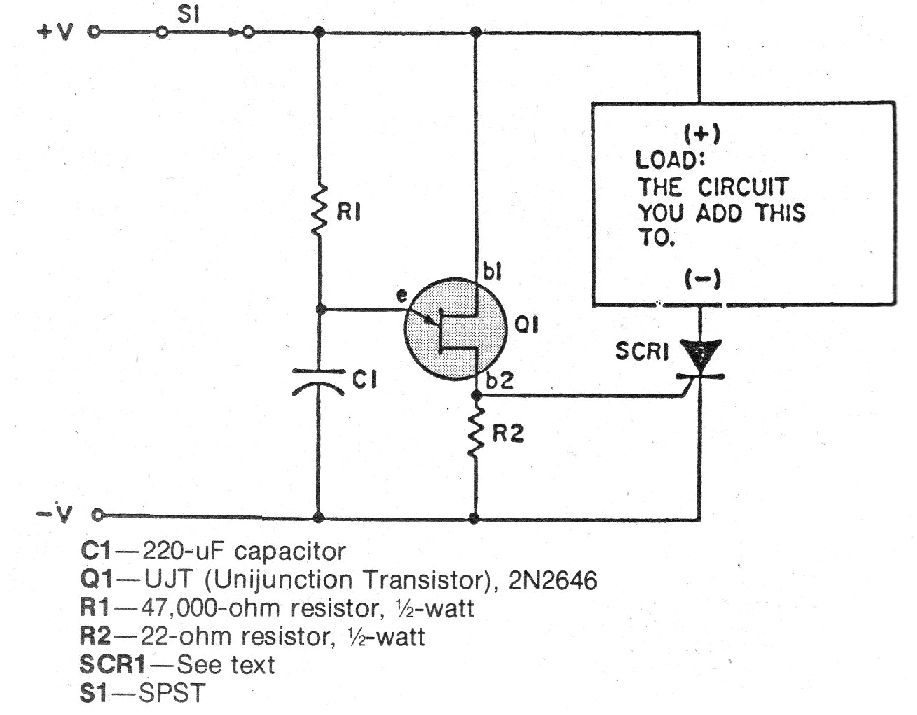

This circuit causes the load to switch on only after a time given by R1 and C1. The SCR must be according to the load voltage. This circuit timers DC loads. We found this circuit in an 80's American documentation.




| Clique na imagem para ampliar |
