Electronic Rheostat UAA1016B (CB14543E)

Details
Written by: Newton C. Braga

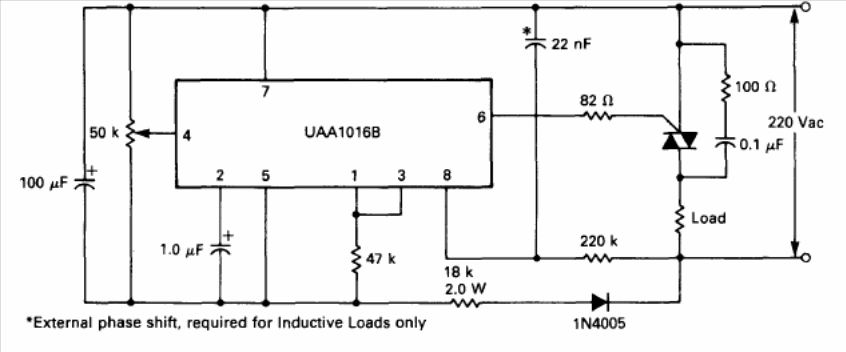

The integrated circuit used is uncommon today. We found this configuration in Motorola's 1990 Linear Databook. The triac can be any of the TIC series.




| Clique na imagem para ampliar |
