SCR Ring Counter (CB14714E)

Details
Written by: Newton C. Braga

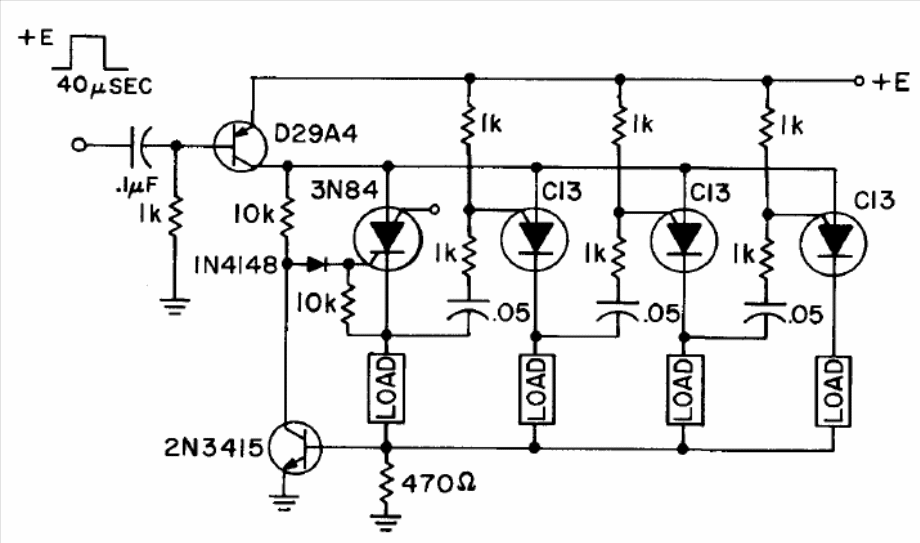

The selected circuit was found in GE's 1977 semiconductor manual. 3N84 is a controlled silicon switch and SCRs support equivalents. The transistor can be a BC558, depending on the supply voltage.




| Clique na imagem para ampliar |
