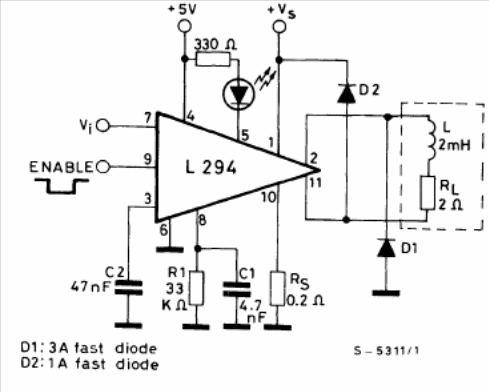

3 A L294 Solenoid Control (CB15152E)

Details
Written by: Newton C. Braga



The integrated circuit used by SGS is not common today. The circuit is from the 1982 SGS linear integrated circuit manual. One possible use is as a shield for microcontrollers.
