The output voltage is adjusted by the trimpot. The power transistor mist be mounted on a heatsink. The 3.9 ohm resistor must be a wirewound type with more than 3 W of dissipation.

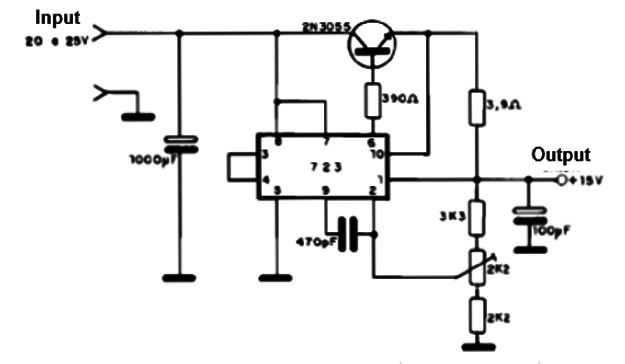

15 V x 1 A Power Supply Using the LM723 (CB862E)
- Details
- Written by: Newton C. Braga
