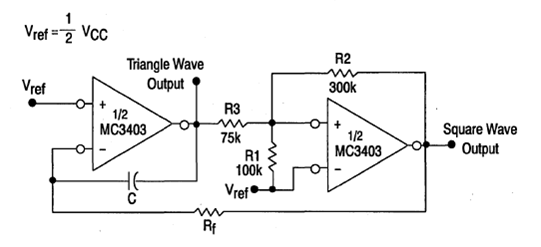

The operation of this circuit is not common today, but equivalents can be experienced. The circuit is from Motorola's Linear Interface ICs. The feed must be symmetrical, and the formula makes it possible to calculate the components.
Function Generator MC3403 (CB15265E)
- Details
- Written by: Newton C. Braga
