Amplifier ICML8063 (CB15368E)

Details
Written by: Newton C. Braga

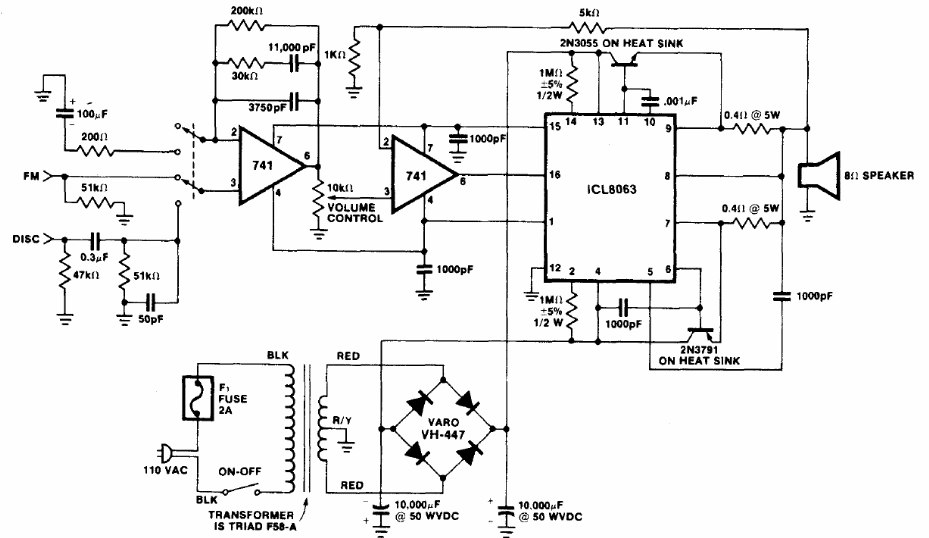

The integrated circuit and configuration are uncommon. However, the sound quality is good. The circuit is from the 1983 Intersil Databook. The output transistors must be provided with heat sinks.




| Clique na imagem para ampliar |
