10 V lamp Logical Indicator (CB14712E)

Details
Written by: Newton C. Braga

1

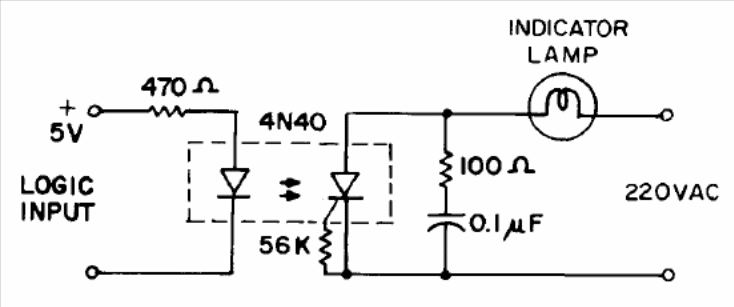

We found this circuit in GE's 1977 semiconductor manual. The optical isolator uses an opto-SCR, and the lamp must be 25 W maximum. Only incandescent lamps should be used.




| Clique na imagem para ampliar |
