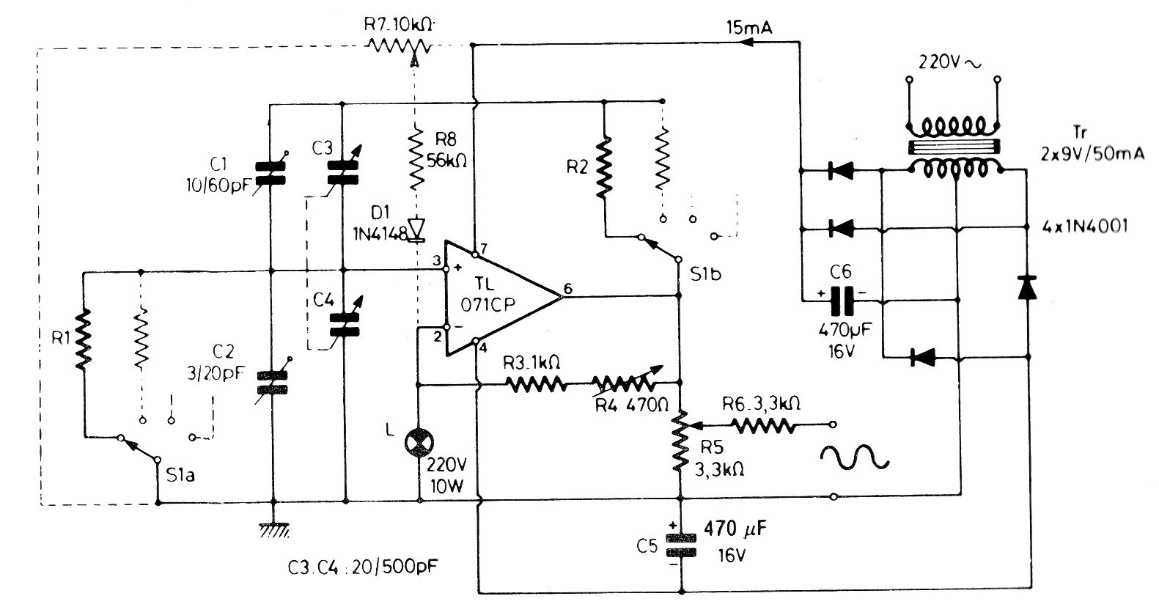

Low Distortion Sinusoidal Generator (CB14860E)

Details
Written by: Newton C. Braga



We found this circuit in a French documentation from the 80's. The components used are still common and the circuit can generate signals from 10 Hz to 100 kHz.
