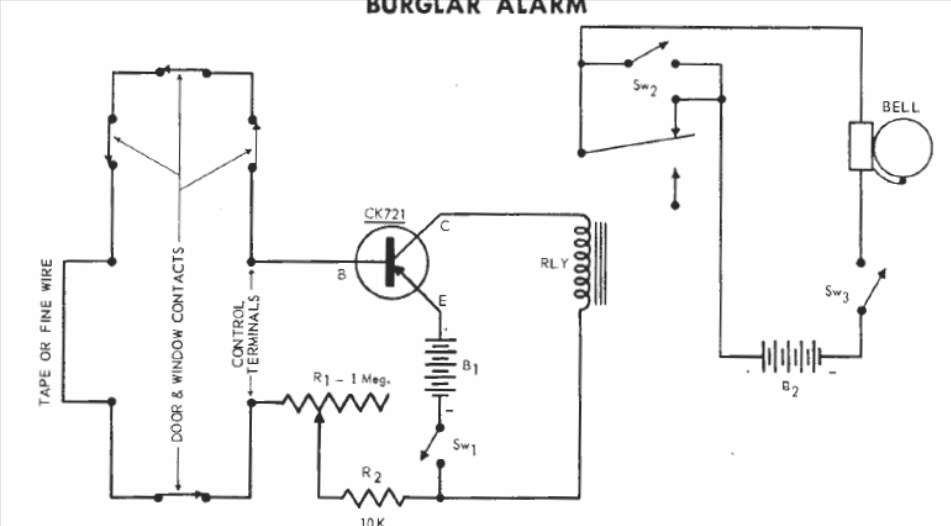

Burglar Alarm CK722 (CB14745E)

Details
Written by: Newton C. Braga



We found this circuit in the 1957 Raytheon transistor application manual. The transistor can be a BC558 and the common 6 V relay, just by using this voltage in the supply.
