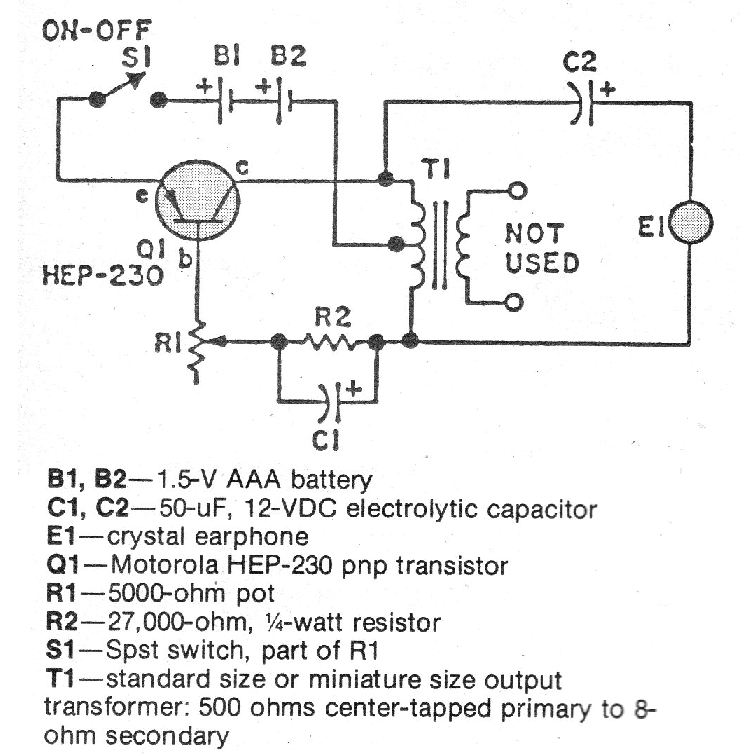

The transformer of this oscillating circuit is obtained from old transistor radios and E1 is a high impedance phone (crystal or ceramic). The frequency is set to R1. The circuit was obtained in an American publication from the 1980s.
| Clique na imagem para ampliar |
