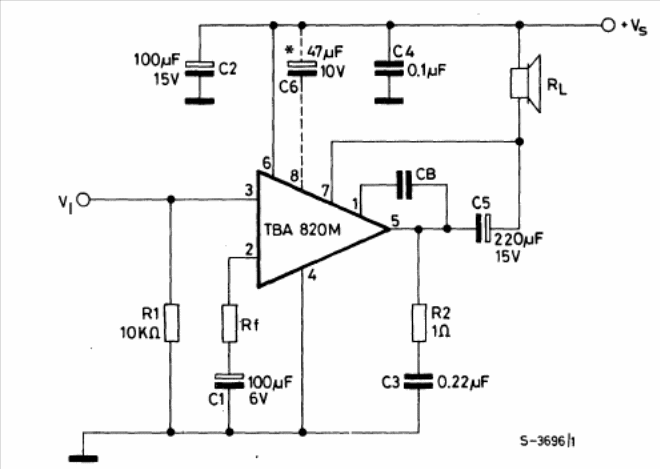

The output power of this amplifier depends on the supply voltage that can be between 3 and 16 V. The maximum power is 1.2 W and the load is connected to the positive of the supply. The circuit is from the 1982 SGS Linear Integrated Circuits Manual.
