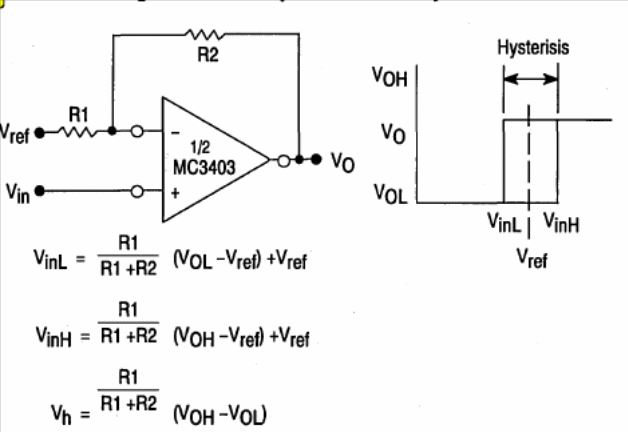

The circuit, from Motorola's 1993 Linear Interface ICs, uses an unusual operating system today. Equivalents can be tried. The formulas next to the diagram make it possible to calculate its components.
Comparator with Hysteresis MC3403 (CB15264E)
- Details
- Written by: Newton C. Braga
