Bargraph TTL voltmeter LM3914 (CB14430E)

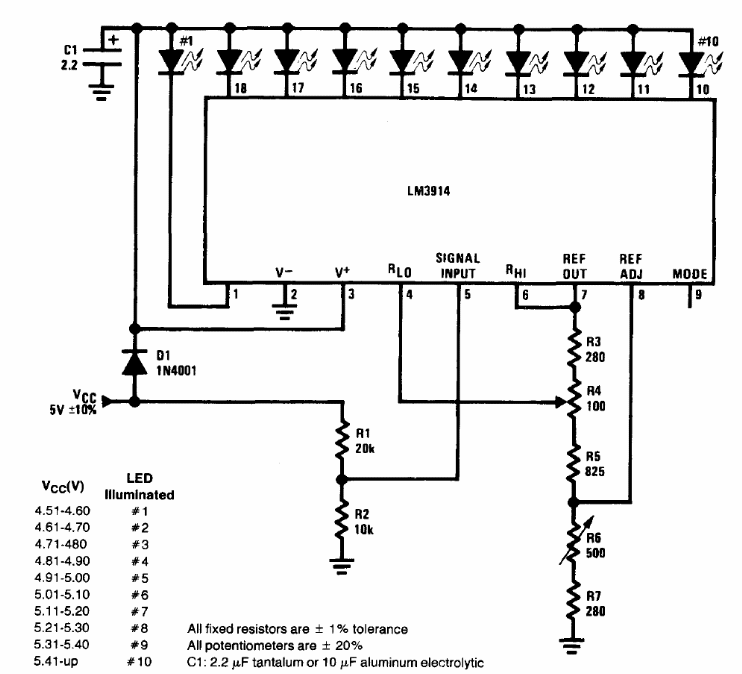

This circuit accurately monitors a 5 V TTL source. The circuit is from National Semiconductor's Linear Applications Handbook.

| Clique na imagem para ampliar |

Voltage Controlled Oscillator 555 (CB22368E)
Using the CMOS version of the 555, this circuit generates voltage-controlled signals in a range...
