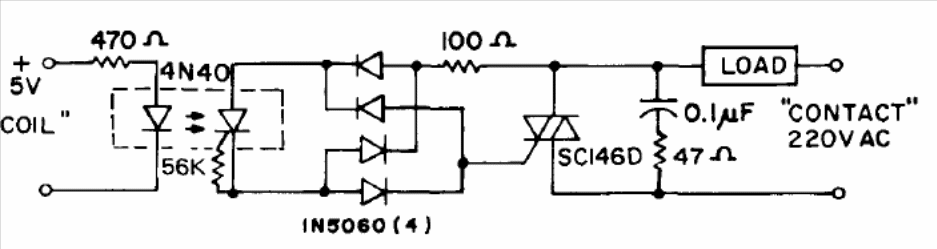

The presented circuit uses an opto-SCR. We found the circuit in the GE semiconductor manual. Equivalent triacs, depending on the load current and voltage, can be used.
| Clique na imagem para ampliar |
High Current TTL Optotrigger (CB14711E)
