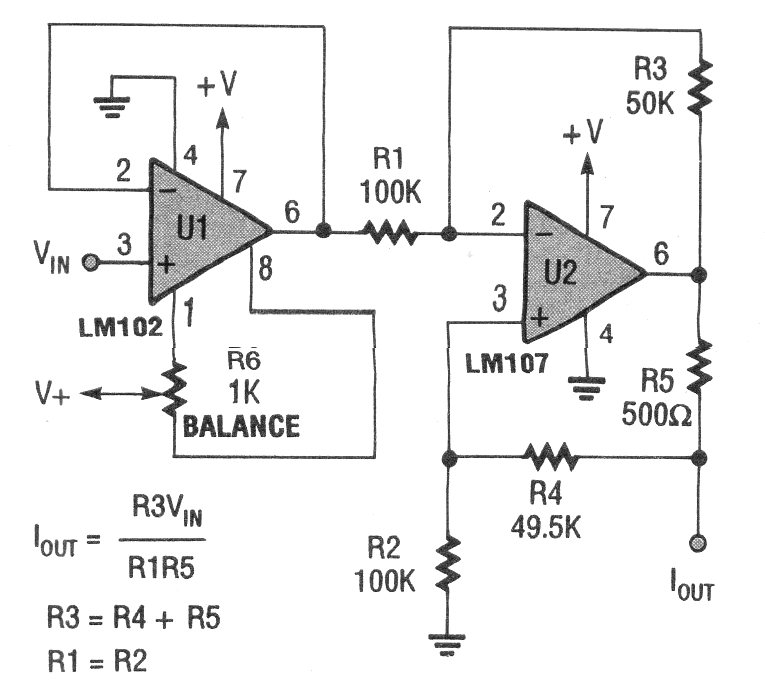

This circuit uses two operational amplifiers that admit equivalents. The configuration is from American documentation from the 90's. The values of the components are calculated by the formula next to the diagram.
| Clique na imagem para ampliar |
Bilateral Current Source 2 (CB15073E)
- Details
- Written by: Newton C. Braga
