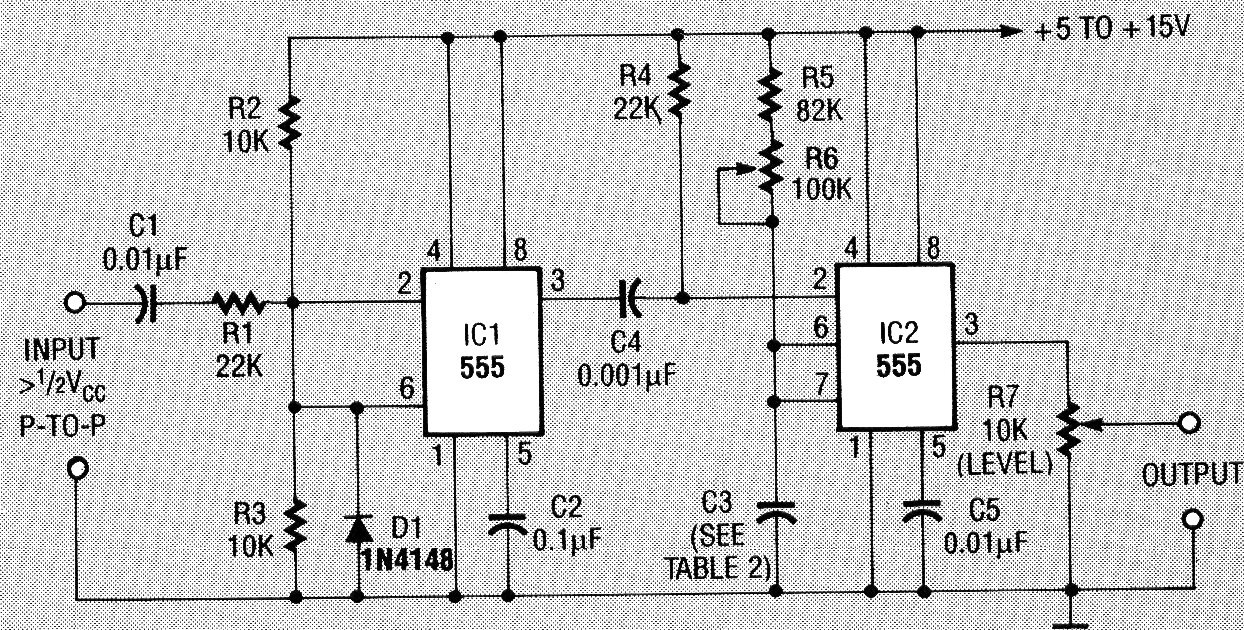

This generator can be triggered by signals of any waveform. The pulse duration is set to R6 and depends on C3. The circuit is from a 2000 Poptronics. C3 can typically have values between 1 nF and 100 nF.
