Sawtooth Generator UJT (CB14888E)

Details
Written by: Newton C. Braga

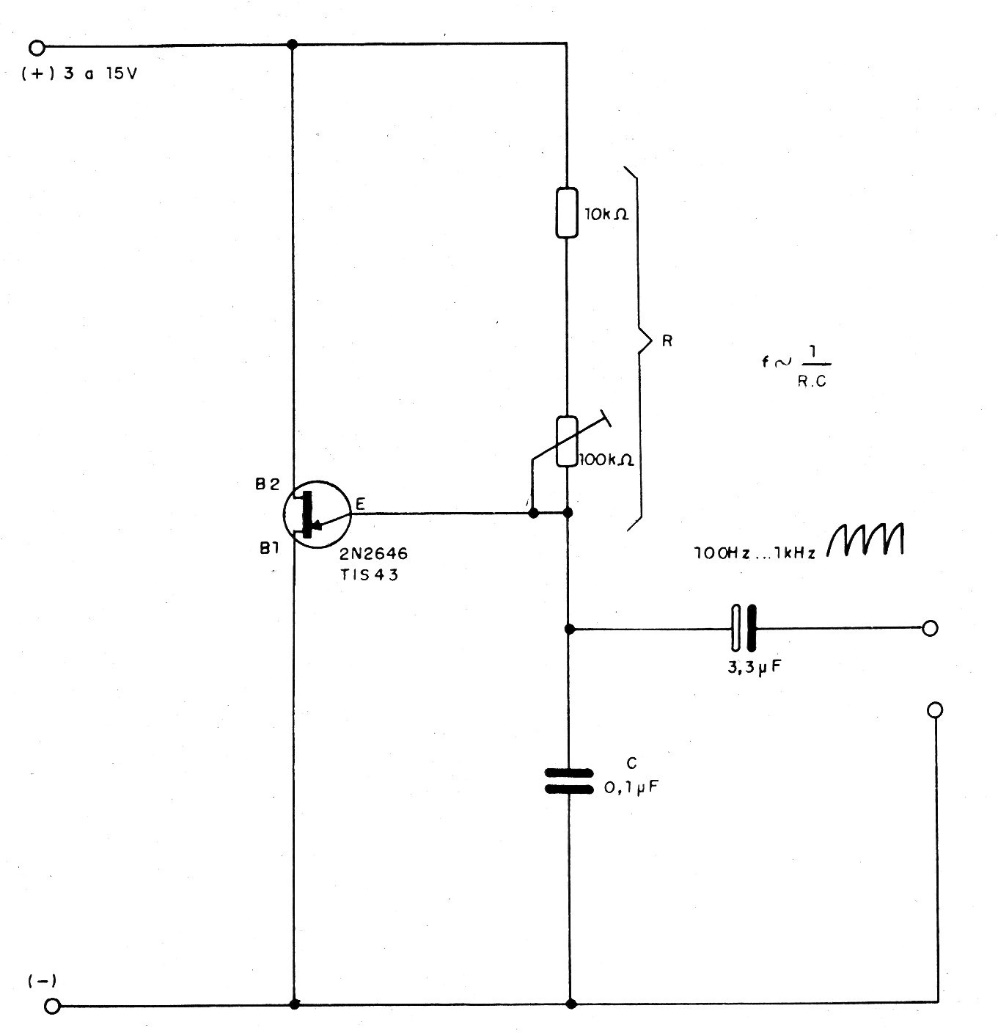

This circuit, found in 1993 documentation, is the traditional relaxation oscillator configuration with unijunction transistor. The frequency depends on C and the resistance value R.




| Clique na imagem para ampliar |
