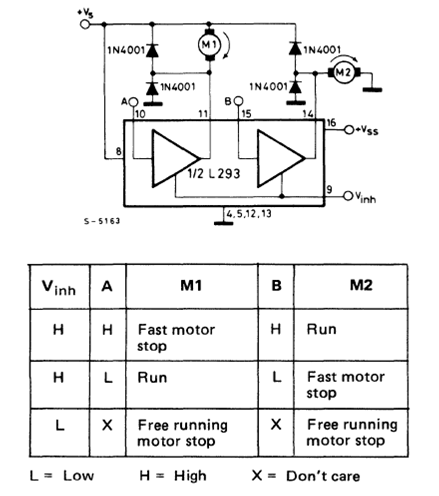

This control for motors up to 1.5 A was found in the SGS manual of linear integrated circuits. The integrated circuit used is not common today and the circuit controls two motors. We can use this circuit as a control shield for microcontrollers.
DC Motor Control L293 (CB15150E)
- Details
- Written by: Newton C. Braga
