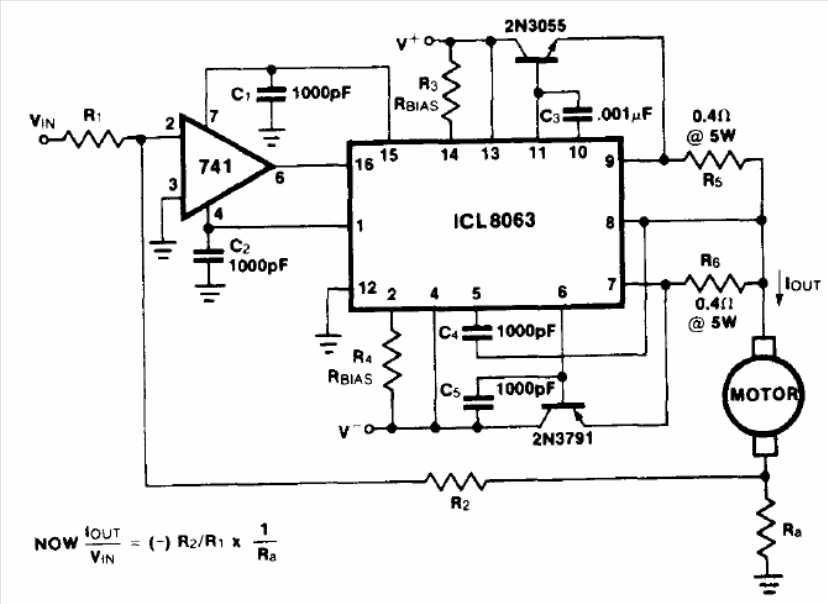

The integrated circuit in this application for 6 V motors is not common today. The circuit is from the 1983 Intersil Databook. Transistors support an equivalent. The formula next to the diagram makes it possible to calculate the values of the main components.
