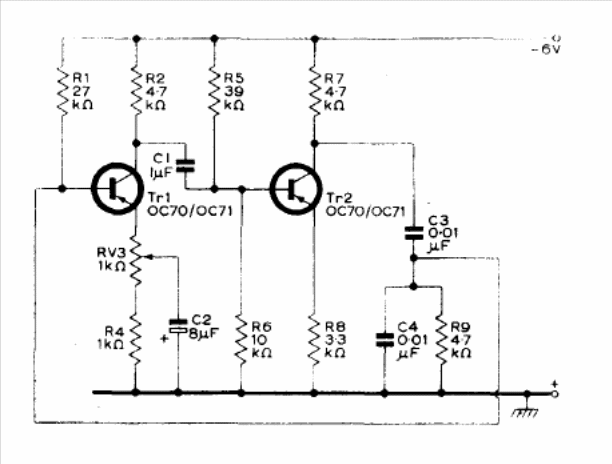

The frequency of this oscillator, found in the 1960 transistor reference manual, is around 3.5 kHz. The circuit generates a sinusoidal signal whose linearity can be adjusted in RV3.
Gemanium Transistors Wien Bridge Oscillator (CB14768E)
- Details
- Written by: Newton C. Braga
