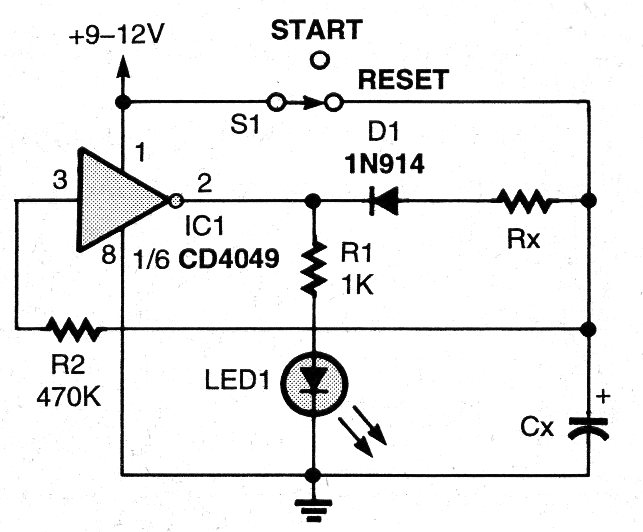

This simple timer uses one of the six inverter ports on a CMOS integrated circuit. Rx and Cx determine the circuit time. Rx can have values between 10k and 2.2 M and Cx between 1 uF and 1000 uF. The circuit is from an American documentation from the year 2000.
